Symmetric Diffusers for LED Hiding and Seamless Applications
V-Series diffusers provide uniform illumination with optimized hiding and efficiency. V-Series are available in two substrates Polypropylene (PP) and Polycarbonate (PC), in continuous, seamless rolls up to a 56-inch (1422 mm) width. A BrightView applications engineer will be happy to help select the correct product for your application.
Semi-Rigid Thermoformable Grade

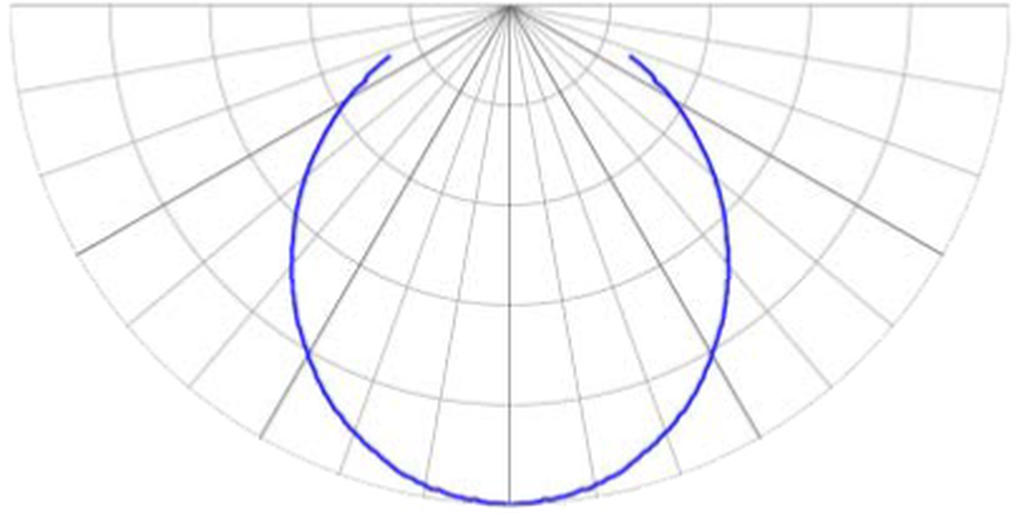

| Product | Available Thickness | Typical angle in a 90º downlight1 (FWHM: full width half max) | Efficiency in typical LED luminaire2 | Features |
| V-H080-CV07 | .007 in 0.18 mm | 80º | 88 - 95% | High Hiding High Efficiency |
| V-H080-CV15 | .015 in 0.38 mm | 80º | 88 - 95% | Highest Hiding Semi-Rigid |
| V-H105-CV07 | .007 in 0.18 mm | 105º | 87 - 94% | Higher Hiding |
| V-H105-CV15 | .015 in 0.38 mm | 105º | 87 - 94% | Higher Hiding Semi-Rigid |
Form Factor

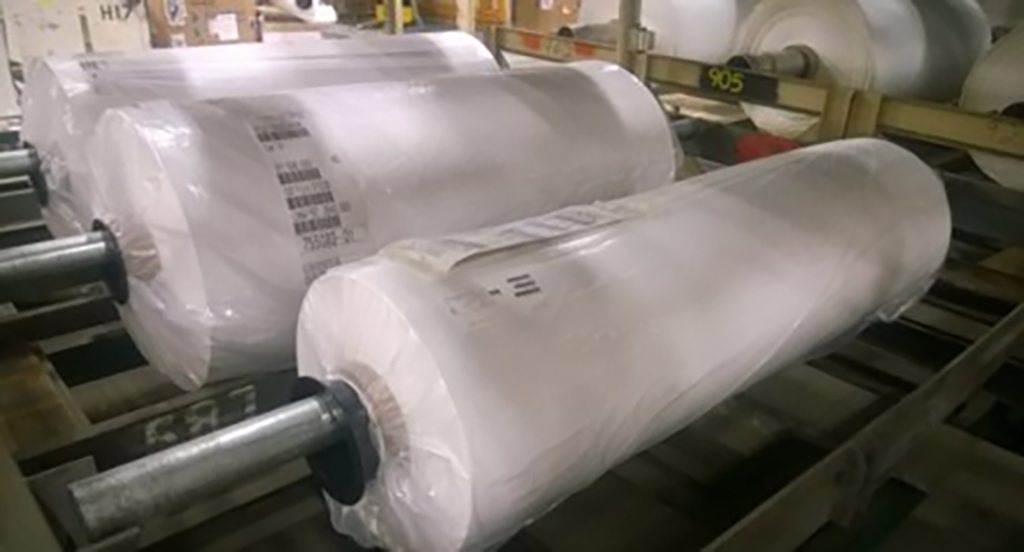

- Available in continuous (seamless) rolls , sheets, or converted parts
- Standard widths
- Flexible Grade: 28, 56 inch
- Thermoformable Grade: 24, 48 inch
Usage Notes
- V-Series diffusers are symmetric; either side can face toward the light source
- Care should be taken not to kink the diffuser as surface blemishes can appear
- BrightView applications engineers can assist with product choices and help your design achieve peak performance
1 Angles are for reference only, and will vary greatly depending on luminaire design.
2 Efficiencies are typical and vary greatly depending on luminaire design.
